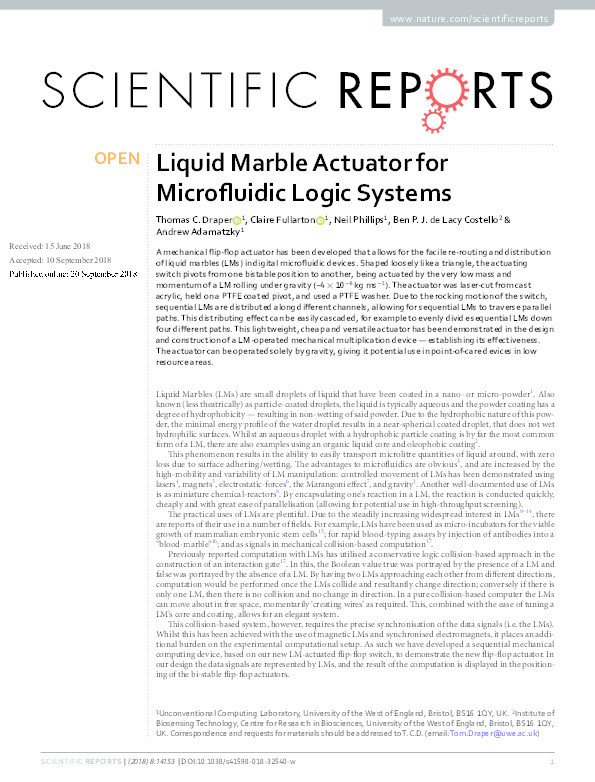

Liquid Marble Actuator for Microfluidic Logic Systems

Draper, Thomas C.; Fullarton, Claire; Phillips, Neil; de Lacy Costello, Ben P. J.; Adamatzky, Andrew

Authors

Thomas Draper Tom.Draper@uwe.ac.uk
Research Associate in Chemistry and Unconventional Computing

Claire Fullarton Claire.Fullarton@uwe.ac.uk
Research Associate in Chemistry anf Material Sciences (Liquid Marbles)

Profile Image

Dr Neil Phillips Neil.Phillips@uwe.ac.uk
Research Associate in CWCR (ENDOWS Drought)



Abstract

© 2018, The Author(s). A mechanical flip-flop actuator has been developed that allows for the facile re-routing and distribution of liquid marbles (LMs) in digital microfluidic devices. Shaped loosely like a triangle, the actuating switch pivots from one bistable position to another, being actuated by the very low mass and momentum of a LM rolling under gravity (~4 × 10 −6 kg ms −1 ). The actuator was laser-cut from cast acrylic, held on a PTFE coated pivot, and used a PTFE washer. Due to the rocking motion of the switch, sequential LMs are distributed along different channels, allowing for sequential LMs to traverse parallel paths. This distributing effect can be easily cascaded, for example to evenly divide sequential LMs down four different paths. This lightweight, cheap and versatile actuator has been demonstrated in the design and construction of a LM-operated mechanical multiplication device — establishing its effectiveness. The actuator can be operated solely by gravity, giving it potential use in point-of-care devices in low resource areas.

Journal Article Type Article
Publication Date Dec 1, 2018
Journal Scientific Reports
Electronic ISSN 2045-2322
Publisher Nature Research (part of Springer Nature)
Peer Reviewed Peer Reviewed
Volume 8
Issue 1
APA6 Citation Draper, T. C., Fullarton, C., Phillips, N., de Lacy Costello, B. P. J., & Adamatzky, A. (2018). Liquid Marble Actuator for Microfluidic Logic Systems. Scientific Reports, 8(1), https://doi.org/10.1038/s41598-018-32540-w
DOI https://doi.org/10.1038/s41598-018-32540-w
Keywords liquid marble, unconventional computing, microfluidic, logic gate, particle-coated droplets, mechanical computing, actuator, flip-flop
Publisher URL https://doi.org/10.1038/s41598-018-32540-w
