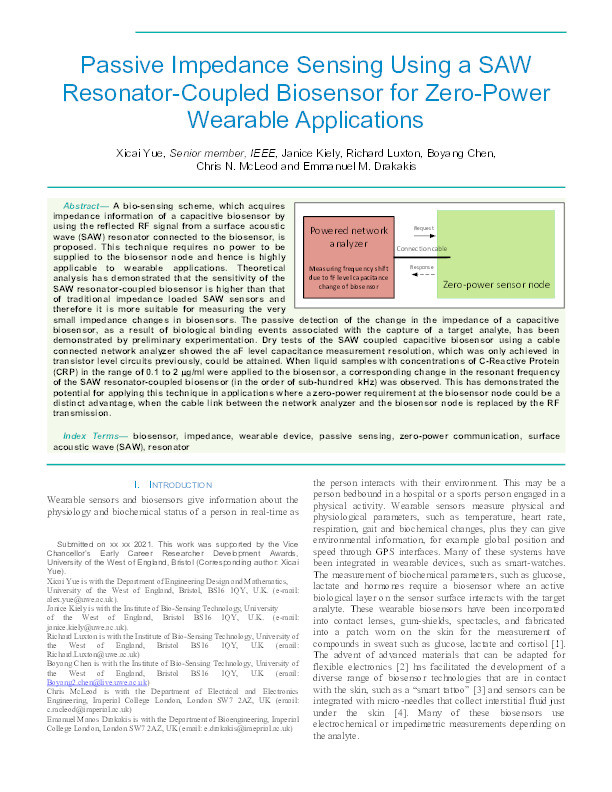

Passive impedance sensing using a SAW resonator-coupled biosensor for zero-power wearable applications

Yue, Xicai; Kiely, Janice; Luxton, Richard; Chen, Boyang; McLeod, Chris N.; Drakakis, Emmanuel M.

Abstract

A bio-sensing scheme, which acquires impedance information of a capacitive biosensor by using the reflected RF signal from a surface acoustic wave (SAW) resonator connected to the biosensor, is proposed. This technique requires no power to be supplied to the biosensor node and hence is highly applicable to wearable applications. Theoretical analysis has demonstrated that the sensitivity of the SAW resonator-coupled biosensor is higher than that of traditional impedance loaded SAW sensors and therefore it is more suitable for measuring the very small impedance changes in biosensors. The passive detection of the change in the impedance of a capacitive biosensor, as a result of biological binding events associated with the capture of a target analyte, has been demonstrated by preliminary experimentation. Dry tests of the SAW coupled capacitive biosensor using a cable connected network analyzer showed the aF level capacitance measurement resolution, which was only achieved in transistor level circuits previously, could be attained. When liquid samples with concentrations of C-Reactive Protein (CRP) in the range of 0.1 to 2 μg/ml were applied to the biosensor, a corresponding change in the resonant frequency of the SAW resonator-coupled biosensor (in the order of sub-hundred kHz) was observed. This has demonstrated the potential for applying this technique in applications where a zero-power requirement at the biosensor node could be a distinct advantage, when the cable link between the network analyzer and the biosensor node is replaced by the RF transmission.

• Journal Article Type: Article
• Acceptance Date: Dec 5, 2021
• Online Publication Date: Dec 20, 2021
• Publication Date: Feb 1, 2022
• Deposit Date: Jan 13, 2022
• Publicly Available Date: Jan 13, 2022
• Journal: IEEE Sensors Journal
• Print ISSN: 1530-437X
• Publisher: Institute of Electrical and Electronics Engineers
• Peer Reviewed: Peer Reviewed
• Volume: 22
• Issue: 3
• Pages: 2347-2357
• DOI: https://doi.org/10.1109/JSEN.2021.3136705
• Keywords: Electrical and Electronic Engineering; Instrumentation
• Public URL: https://uwe-repository.worktribe.com/output/8545043
