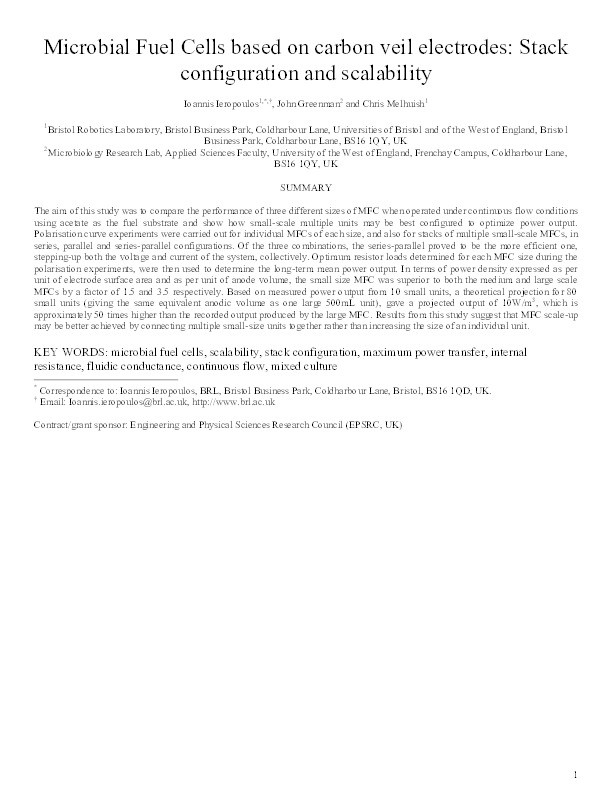

Microbial fuel cells based on carbon veil electrodes: Stack configuration and scalability

Ieropoulos, Ioannis; Greenman, John; Melhuish, Chris

Abstract

The aim of this study was to compare the performance of three different sizes of microbial fuel cell (MFC) when operated under continuous flow conditions using acetate as the fuel substrate and show how small-scale multiple units may be best configured to optimize power output. Polarization curve experiments were carried out for individual MFCs of each size, and also for stacks of multiple small-scale MFCs, in series, parallel and series-parallel configurations. Of the three combinations, the series-parallel proved to be the more efficient one, stepping up both the voltage and current of the system, collectively. Optimum resistor loads determined for each MFC size during the polarization experiments were then used to determine the long-term mean power output. In terms of power density expressed as per unit of electrode surface area and as per unit of anode volume, the small-sized MFC was superior to both the medium- and large-scale MFCs by a factor of 1.5 and 3.5, respectively. Based on measured power output from 10 small units, a theoretical projection for 80 small units (giving the same equivalent anodic volume as one large 500mL unit) gave a projected output of 10Wm -3 , which is approximately 50 times higher than the recorded output produced by the large MFC. The results from this study suggest that MFC scale-up may be better achieved by connecting multiple small-sized units together rather than increasing the size of an individual unit. Copyright © 2008 John Wiley & Sons, Ltd.

• Journal Article Type: Article
• Publication Date: Oct 25, 2008
• Deposit Date: Feb 19, 2013
• Publicly Available Date: Feb 11, 2016
• Journal: International Journal of Energy Research
• Print ISSN: 0363-907X
• Electronic ISSN: 1099-114X
• Publisher: Wiley
• Peer Reviewed: Peer Reviewed
• Volume: 32
• Issue: 13
• Pages: 1228-1240
• DOI: https://doi.org/10.1002/er.1419
• Keywords: microbial fuel cells, scalability, stack configuration, maximum power transfer, internal resistance, fluidic conductance, continuous flow, mixed culture
• Public URL: https://uwe-repository.worktribe.com/output/1008123
• Publisher URL: http://dx.doi.org/10.1002/er.1419
• Related Public URLs: http://onlinelibrary.wiley.com/advanced/search/results
• Additional Information: Additional Information : This is the pre-peer reviewed version of the following article: "Ieropoulos, Ioannis and Greenman, John and Melhuish, Chris (2008) Microbial fuel cells based on carbon veil electrodes: stack configuration and scalability. International Journal of Energy Research, 32 (13). pp. 1228-1240" which has been published in final form at http://dx.doi.org/10.1002/er.1419.
• Contract Date: Feb 11, 2016
